Ambient Climate Test Chamber With Temperature Range Of -70~150℃

Certificado
China Dongguan FREETO Medical Technology Co., LTD Certificações
China Dongguan FREETO Medical Technology Co., LTD Certificações
Revisões do cliente
A estrutura de caixa é bonita e generosa, e o uso de nenhuns punho da reação, operação estável simples da operação, da temperatura e da umidade, precisão alta. Explique o método da operação do equipamento em detalhe, muito bom

—— Masood Rehman

Eu devo confessá-lo tenho habilidades brilhantes das relações com os clientes e eu estou aprendendo de você. Eu digo-lhe se você quer ver como Zâmbia bonita em África

—— Dr. Claude VILLETTE -----França

Agradecimentos que dão sempre me bons produtos. agradecimentos para seu esforço você feito antes. seu amigo de Egito.

—— Waleed-Egito

Estou Chat Online Agora

Ambient Climate Test Chamber With Temperature Range Of -70~150℃

Ambient Climate Test Chamber With Temperature Range Of -70~150℃
Ambient Climate Test Chamber With Temperature Range Of -70~150℃ Ambient Climate Test Chamber With Temperature Range Of -70~150℃

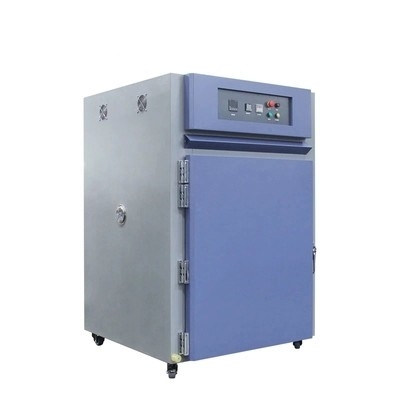

Imagem Grande :  Ambient Climate Test Chamber With Temperature Range Of -70~150℃

Detalhes do produto:
Lugar de origem: Donggaun, porcelana
Marca: GSKA
Certificação: CE SGS ROHS UL
Número do modelo: Câmara do teste ambiental
Condições de Pagamento e Envio:
Quantidade de ordem mínima: negocie
Preço: negotiate
Detalhes da embalagem: Pacote da exportação
Tempo de entrega: 10-60days após o pagamento confirmado ou pela estipulação do contrato
Termos de pagamento: L/C, T/T
Habilidade da fonte: 100 grupos/grupos pelo mês

Ambient Climate Test Chamber With Temperature Range Of -70~150℃

descrição
Controle de umidade: 20%RH~98%RH, opção Flutuação da temperatura: ±1,0℃
Apoio personalizado: OEM Condensador: agente de condensação Água-de refrigeração
Cooling Rate/min: 1 Degree Uniformidade da temperatura: ±2,0℃
Poder: 220V, 50Hz Palavra-chave: Câmaras ambientais

Ambient Climate Test Chamber With Temperature Range Of -70~150℃



Box structure:


1. The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction handle, which is easy to operate.


2. The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with

A3 steel plate, which increases the appearance texture and cleanliness.


3. The water replenishment tank is placed in the lower right part of the control box, and has automatic water shortage protection, which is more convenient for the operator to replenish the water source.


4. The large observation window is equipped with lights to keep the inside of the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.


5. The humidification system pipeline is separated from the control circuit board, which can avoid failure due to water leakage in the humidification pipeline and improve safety.


Features of Climatic test chamber:

* Uncover test unit weakness in a short-term test with accelerated time effect.

* Each programme can do 999 times or repeat, operation interface is English. It is with fault warning and protecting function, RS-232 communication interface, attached PC software available for far control.

* The shelves can be equipped more according to customers' requirements and the space between shelves can be adjusted.

* Independent audible and visible temperature-limiting alarm system ensures experiments run safely.


Performance parameters:



Temperature Range A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-70~150℃
Humidity Range 20%RH-98%RH (details see temperature humidity control diagram).
Temperature Fluctuation ±0.5℃
Humidity Fluctuation ±2%RH
Temperature Deviation ≤2.0℃
Humidity Deviation A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH.
Temperature Uniformity ≤±2.0℃
Humidity Uniformity +2,-3%RH
Heating Rate Approx 3℃/mins,average non-linear ,no load
Cooling Rate Approx 1℃/ mins,average non-linear ,no load
Temperature Overshoot ≤±2℃
Internal Material 1.2mm thick SUS#304 high &low temperature resistance stainless steel.
External Material Adopt flame retardant high strength PU Polyurethane foam insulation material.
Control Method Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.








We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.



Advantage:



Ø 24 hours online


Ø 35 years experiences


Ø Sample chamber of each model


Ø Best price, fast delivery


Ø OEM,ODM


Ø Oversea offices


Ø Own import and export business license


ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
